Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Product Series: RSP 2
Product Code: RSP 2 SA L
Shell-, extruded assembled cases, desk consoles and Euro cases

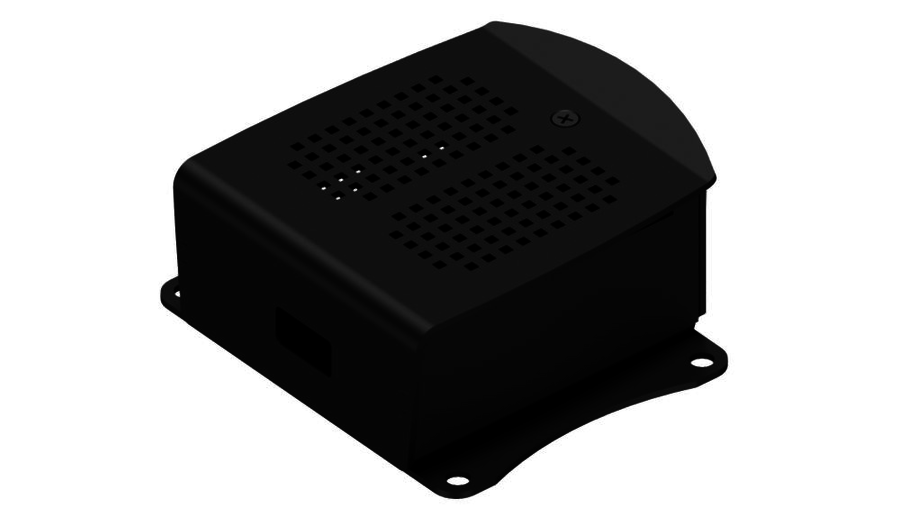

Solid case made of 1,5 mm thick aluminium half shells designed for the single board computer Raspberry Pi 3 Mod. A+. Standard version in 32 mm height.
| Heatsink set | |
|---|---|
| Type of mounting | |
| Heat conducting foil | no |
| Active cooler | no |
| Material | Aluminium |
| Surface upper shell | |
| Surface lower shell | |
| Suitable for Raspberry Pi | 3 Mod. A+ |
| RoHS (status) | compliant |
| REACH (status) | compliant |
| Material thickness | 1.50 |
| Max width upper shell (mm) | 68.40 |
| Max width lower shell (mm) | 62.00 |
| Max width including fixing straps (mm) | 84.00 |
| Total length (mm) | 69.50 |
| Total height (mm) | 32.00 |
| Net Part Weight | 85.00 |
| Weight Unit of Measure | G |
| Length (mm) | 69.50 |
| Height (mm) | 32.00 |
