Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Product Series: RSP 4
Product Code: RSP 4 H OG L
Shell-, extruded assembled cases, desk consoles and Euro cases

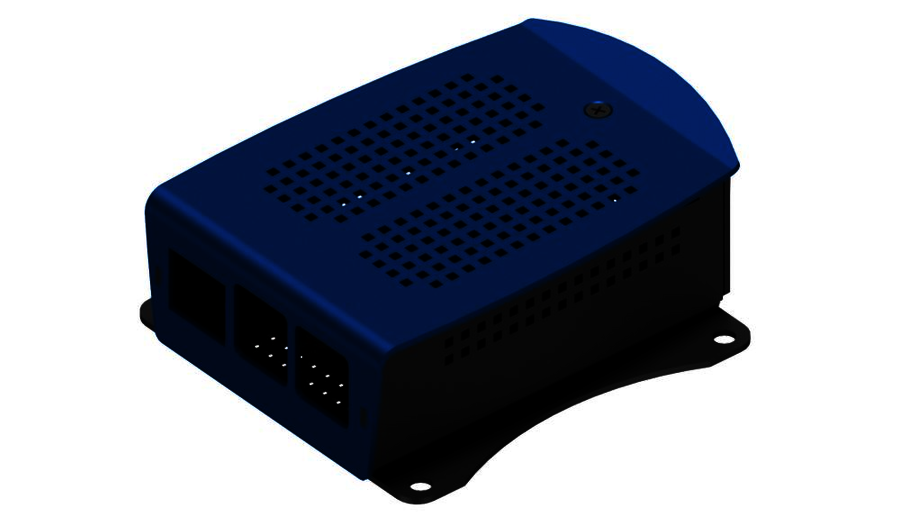

Solid case made of 1,5 mm thick aluminium half shells designed for the single board computer Raspberry Pi 5. Standard version in 32 mm height.
| Heatsink set | |
|---|---|
| Type of mounting | |
| Heat conducting foil | no |
| Active cooler | no |
| Material | Aluminium |
| Surface upper shell | |
| Surface lower shell | |
| Suitable for Raspberry Pi | 5 |
| RoHS (status) | compliant |
| REACH (status) | compliant |
| Material thickness | 1.50 |
| Max width upper shell (mm) | 71.00 |
| Max width lower shell (mm) | 62.00 |
| Max width including fixing straps (mm) | 84.00 |
| Total length (mm) | 90.00 |
| Total height (mm) | 56.00 |
| Net Part Weight | 142.40 |
| Weight Unit of Measure | G |
| Length (mm) | 90.00 |
| Height (mm) | 56.00 |
