Description

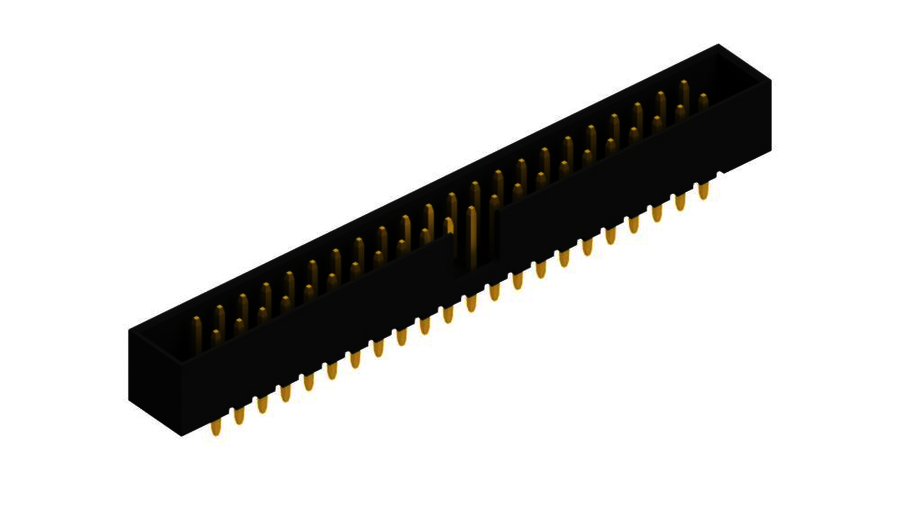

Product ID
ASLGY 44 G
Product Category
IDC Connectors
Description
Description for product ASLA 10
Parameters
- A:: 51mm
- C:: 42mm
Features
| no. of contacts | 44 |
| surface contact /contact sleeve | Ni+≥0.2µm Au |
| contact material | Cu-alloy |
| nominal current | 1.5A |
| nominal voltage | 150 V DC |
| test voltage | 500 V AC |
| insulating body material | PBT |
| temperature range | -40°C … +105°C (260°C / 10s) |
| class of inflammability | UL 94 V-0 |
| specific insulation resistance | >107 Ω·m |
| a | 51mm |
| b | 49.8mm |
| c | 42mm |
